Additional Information
| System Voltage | 230V |
| Heater Type | Flow Thru |

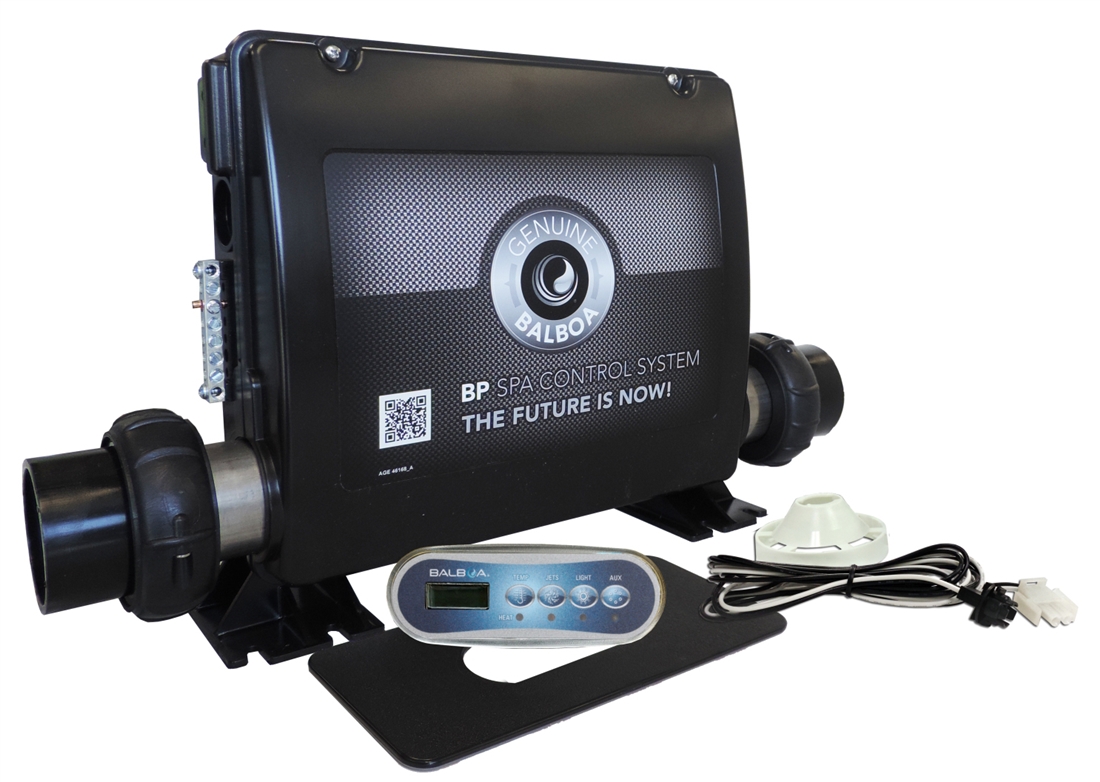

50-BP7-200-40-K Balboa BP7 Spa Control w/ TP200 Topside 4.0kw
Product Code: 50BP720040K
Our Price: $999.00
Sale Price: $548.00
You save $451.00!
Description
50-BP7-200-40-K Balboa BP7 Spa Control w/ TP200 Topside 4.0kw.
Configured to your specs prior to shipping out.
Does not include pump power cords.
| Number Of Appliances | 1, 2 |
| Manufacturer | Balboa Water Group |
| Model | BP7 |
| Supply Voltage | 230v - 3 Wire, 230v - 4 Wire |
| Heater Type | Fixed - Bottom |
| Heater Wattage | 4.0kW |
| Topside Included | TP200T |
| Circ Pump Ready | Optional 115v/230v |
| Auxiliary Topside Ready | Yes |
| Fiber Optic | No |
| Accessory Ready | Yes |
| Wi-Fi Compatible | Yes |
| 50/60 HZ | 50Hz, 60Hz |
BP7 Spa Control 4.0KW Flow Thru Heater G6405
The Next Generation of Balboa BP Hot Tub Control Systems is finally here.
7 relays, the BP7 has 32 different setups and can power a spa with 1-4 pumps, including Microsilk systems. Can also replace any Balboa BP System* while using the existing topside that is already installed on the spa. Will replace any Balboa VS or EL System* when you match it with any TP or SpaTouch topside panel. Will replace any Balboa or other brand’s non-low flow system* when you match it with any TP or SpaTouch topside panel. This system can only be wired 220v.
G6405 BP7 Programming And topside Configuration click: HERE
Features:
- Supports all TP and SpaTouch topsides
- Supports all BP ancillary products (ControlMySpa, BBA, CZ, and Status Pro)
- Plug-N-Click Heater
- WiFi Included
Kit Includes:
- G4361 - Balboa BP7 System with 4.0kW Heater
- G8421 - Balboa TP200 Panel
- 25098 - Wire Assembly, 8ft for spa light
- 15480 - Panel Bezel (Adapter Plate)
-CAN REPLACE ANY BP BALBOA SYSTEM* - While using the existing topside that is already installed on the spa
-CAN REPLACE ANY BALBOA VS OR EL SYSTEM* - When you match it with any TP or SpaTouch™ topside panel
*Both the Circ pump and Ozone can be converted to 120V, however, they will be the same voltage after conversion. (Both 120V or both 240V.)
*If a 24-hour circulation pump is being installed, it must have no less than a 23 GPM flow. Laing, Grundfos, or Waterway Tiny Might pumps do not perform at this rate and cannot be used
