50-BP7-200-40-K Balboa BP7 Spa Control w/ TP200 Topside 4.0kw
50-BP7-200-40-K Balboa BP7 Spa Control w/ TP200 Topside 4.0kw

Alternative Views:


Our Price: $999.00
Sale Price: $550.00


Product Code: 50BP720040K

Description

50-BP7-200-40-K Balboa BP7 Spa Control w/ TP200 Topside 4.0kw.

Configured to your specs prior to shipping out.

Does not include pump power cords.

Number Of Appliances 1, 2
Manufacturer Balboa Water Group
Model BP7
Supply Voltage 230v - 3 Wire, 230v - 4 Wire
Heater Type Fixed - Bottom
Heater Wattage 4.0kW
Topside Included TP200T
Circ Pump Ready Optional 115v/230v
Auxiliary Topside Ready Yes
Fiber Optic No
Accessory Ready Yes
Wi-Fi Compatible Yes
50/60 HZ 50Hz, 60Hz

BP7 Spa Control 4.0KW Flow Thru Heater G6405
The Next Generation of Balboa BP Hot Tub Control Systems is finally here.

7 relays, the BP7 has 32 different setups and can power a spa with 1-4 pumps, including Microsilk systems. Can also replace any Balboa BP System* while using the existing topside that is already installed on the spa. Will replace any Balboa VS or EL System* when you match it with any TP or SpaTouch topside panel. Will replace any Balboa or other brand’s non-low flow system* when you match it with any TP or SpaTouch topside panel. This system can only be wired 220v.

G6405 BP7 Programming And topside Configuration click: HERE

Features:

  • Supports all TP and SpaTouch topsides
  • Supports all BP ancillary products (ControlMySpa, BBA, CZ, and Status Pro)
  • Plug-N-Click Heater
  • WiFi Included

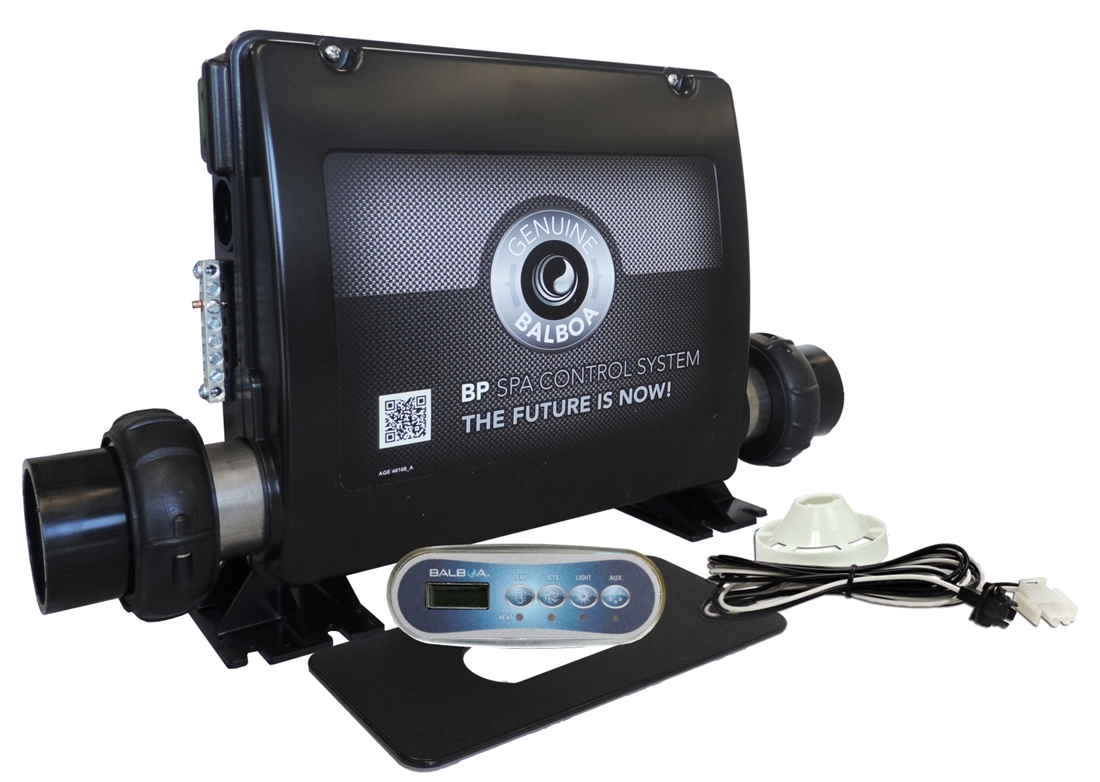

Kit Includes:

  • G4361 - Balboa BP7 System with 4.0kW Heater

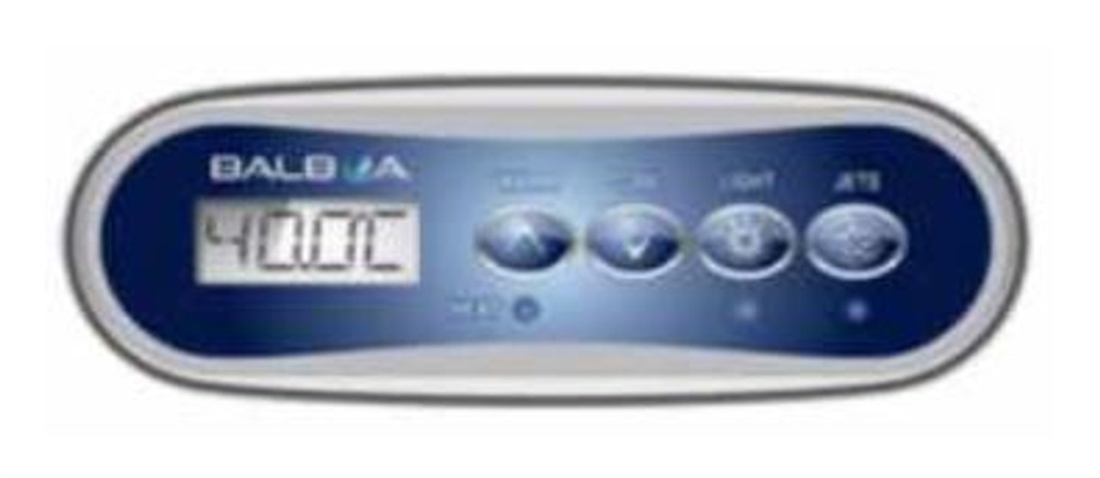

  • G8421 - Balboa TP200 Panel
  • 25098 - Wire Assembly, 8ft for spa light
  • 15480 - Panel Bezel (Adapter Plate)

-CAN REPLACE ANY BP BALBOA SYSTEM* - While using the existing topside that is already installed on the spa

-CAN REPLACE ANY BALBOA VS OR EL SYSTEM* - When you match it with any TP or SpaTouch™ topside panel

*Both the Circ pump and Ozone can be converted to 120V, however, they will be the same voltage after conversion. (Both 120V or both 240V.)

*If a 24-hour circulation pump is being installed, it must have no less than a 23 GPM flow. Laing, Grundfos, or Waterway Tiny Might pumps do not perform at this rate and cannot be used


Additional Information

System Voltage 230V
Heater Type Flow Thru
